W-TEL-ODC-series Outdoor cable system

ODC cable system

Structure Features:
The fibers are positioned in a loose tube,The tubes are filled with a water-resistant filling compound.The tube is wrapped with a layer of PSP longitudinally;
Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape;The cable is completed with a polyethylene(PE) sheath.

Technical Features:
the special method of controlling optical fiber excess length and cabling method for superior mechanical and environmental performance;
Special water-blocking filling compound  ensure the cross section water-blocking; PSP enhancing moisture-proof; Compact structure,light weight, steel tape armored,excellent crush-resistant performance; Bullet-resistant.


Technical Parameters:

Fiber
Counts
Outer diameter
(MM)
Weight
(KG)
Allowed hort-time
Pulling (N)
Allowed Crush
(N/100mm)
Lmpact
(N.m)
Allowed Bending Radius
Static Dynamic
2-12
9.8 -10.5
105-125
≥3000
≥3000
10
10D     20D


D=Cable diameter
Transmission Characteristics:


Single-mode fiber
50/125
62.5/125
1310/1550(NM)
850/1300(NM)
850/1300(N/M)
Attenuation (db/KM)
≤0.36/0.22
≤3.0/1.0
≤3.3/1.0
Bandwidth (MHz﹒km)
≥500/1200
≥200/600

GYXTW Unitube armored Cable                                      GYXY Unitube Non-armored Cable

GYFXY Unitube Non-metallic Non-armored Cable         GYTS Layer Stranded Loose Tube armored Cable

GYTA Layer Stranded Loose Tube Armored Cable          GYFTY Layer Stranded Loose Non-armored Cable

GYFTS Loose Tube Stranded Cable With Non-metal     GYTA53 Layer Loose Tube Armored Cable

Central Strength Member And Steel Tape


ADSS All Dielectric Self Supporting Optical Cable            Waterproof Cable


Leave Message
Related Product

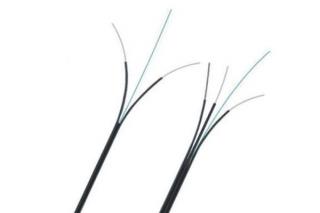

W-TEL-DPC-Series Drop cable system W-TEL-DPC-Series Drop cable system
The optical fiber unit is positioned in the center, two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.Then the cable is completed with a black or color LSZH sheath. Cha...
Detailed +

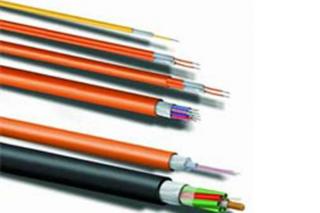

W-TEL-IDC-Series Indoor cable system W-TEL-IDC-Series Indoor cable system
IDC cable system The optical fiber unit is positioned in the center, two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.Then the cable is completed with a black or colo...
Detailed +

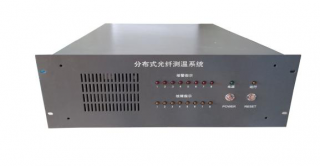

W-TEL-FTM-Series Optical fiber temperature monitoring system W-TEL-FTM-Series Optical fiber temperature monitoring system
