  • Product Details

System 1:  Cabinet product introduction


W-TEL cabinets can be divided into the following types:

By function: fireproof and antimagnetic cabinet, power supply cabinet, monitoring cabinet, shielding cabinet, safety cabinet, Water cabinet, safe, multimedia console, file cabinet, wall-mounted cabinet

According to the scope of application: outdoor cabinets, indoor cabinets, communication cabinets, industrial safety cabinets, low-voltage distribution Electric cabinet, power cabinet, IDC server cabinet

Extended classification: console, computer case cabinet, stainless steel case, monitoring console, industrial cabinet, standard cabinet, network cabinet.


Features:

1. High-quality cold-rolled steel plate and electrostatic plastic powder coating surface, so that

Rigidity and corrosion resistance of the cabinet.

1. Good ventilation and heat dissipation.

2. Large load-bearing capacity, can adapt to large-scale clothes server installation.

3. The overall layout is reasonable and the functions are complete. Standard 19-inch equipment

Installation structure, cable fixing, management cabling, AC and DC power distribution modules.

4. Large effective equipment installation space.

(1600mm high / 31U, 1800mm high / 36U,2000mm / 42U, 2200mm / 47U, 2600mm / 54U)

Flexible equipment installation: equipment installation shelf up and down, front and back adjustable.

5. Good universality: suitable for large-scale integrated communication network machines room use.

Suitable for remote communication room use.





System 2: Cabinet configuration introduction


Common configurations are: fan components, ODF units, fiber storage units, DDF unit, AC / DC power distribution, cable managers, power strips, trays, rails, ground protection copper bars. etc.




System 3: Data center cold aisle introduction


W-TEL cold aisle definition: The cold aisle is closed between the two rows of cabinets, and the cold air is obtained under the floor to form a cold aisle. Cold air passes through the rack and takes away the server's heat into the hot aisle. Reach the best air-cooling efficiency.


Data center cold aisle working principle:



Cold aisle system composition:

1. Cold aisle sliding door;

2. Pan side panels;

3. Cold aisle ceiling module;

4. Cold aisle isolation module;

5. Fire protection module;

6. Composed of precise air supply module for floor;

7. Cabinet.


Cold aisle diagram:


Leave Message
Related Product

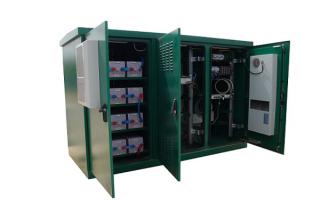

W-TEL-OBC-Series Outdoor Battery Cabinet W-TEL-OBC-Series Outdoor Battery Cabinet
Summary: W-TEL-OBC-series outdoor telecommunication battery cabinet is mainly used in the field of traffic, CATV, electric power etc.Can be used under different conditions: gale, rain, snow,...
Detailed +

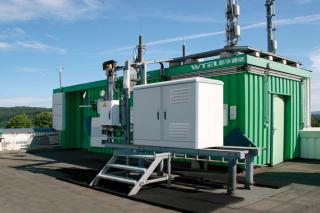

W-TEL-BTS-Series Telecom Mobile Container Shelter W-TEL-BTS-Series Telecom Mobile Container Shelter
