W-TEL-DPC-Series Drop cable system
W-TEL-DPC-Series Drop cable system
  • Product Details

The optical fiber unit is positioned in the center, two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.Then the cable is completed with a black or color LSZH sheath.

Characteristic:
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
Two parallel strength members ensure good performance of crush resistance to protect the fiber;
Simple structure, light weight and high practicability;
Novel flute design, easily strip and splice, simplify the installation and maintenance.

Geometrical Characteristics:

Fiber Core
1
2
1
4
Cable Dimension(mm)
2.0×3.0
2.0×3.1
2.0×3.8
2.0×4.0
Cable Weight(kg/km)
8
8.5
9
10


Mechanical Characteristics:

Tensile strength(N)
Long Term
30
Short Term
60
Crush resistance(N/100mm)
Long Term
300
Short Term
1000
Bending Radius(CM)
Dynamic
30
Static
15


Transmission Characteristics:

SMF
50/125
62.5/125
1310/1550(nm)
850/1300(nm)
850/1300(nm)
Attenuation(dB/km)
≤0.40/0.30
≤3.5/1.5
≤3.5/1.5
Minimum Bandwidth
(MHz·km)
Bandwidth(MHz·km) Bandwidth(MHz·km)
---------
≥500/1000
≥200/600


Environmental Characteristics:

Storage Operating Temperature
-20℃~+60℃


FTTH Cable (GYXTPY)             FTTH Drop cable                    FTTH Indoor Cable



Related Product

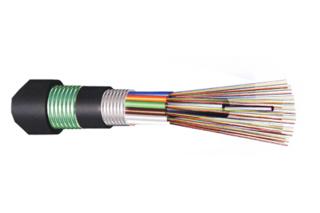

W-TEL-ODC-Series Outdoor cable system W-TEL-ODC-Series Outdoor cable system
W-TEL-ODC-series Outdoor cable system ODC cable system Structure Features: The fibers are positioned in a loose tube,The tubes are filled with a water-resistant filling compound.The tube ...
Detailed +
W-TEL-IDC-Series Indoor cable system W-TEL-IDC-Series Indoor cable system
IDC cable system The optical fiber unit is positioned in the center, two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.Then the cable is completed with a black or colo...
Detailed +

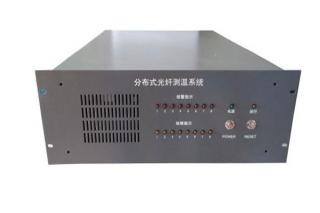

W-TEL-FTM-Series Optical fiber temperature monitoring system W-TEL-FTM-Series Optical fiber temperature monitoring system
