W-TEL-ODF-Series Optic Distribution Frame
W-TEL-ODF-Series Optic Distribution Frame
  • Product Details

1.Application
Modular ODF is used in center office, optical cross connection point and network access point in fiber access network projects to realize the fiber fusion, fiber optic cable distribution, management and protection. The unit is installed in the optical distribution frame, and can be flexibly Confederate. it is the necessary equipment in the optical access network.


2.Summary
It is convenient for the connection and distribution of fiber optic cable and also good at distribution in the large capacity exchange bureau, CATV fiber system and fiber optic communication system. W-TEL optical distribution frame (ODF) is specifically designed for the first sector of FTTX operating; it is normally placed at service provider's central office (CO). The optical distribution frame brings a stable solution for safely containing
FDU (Fiber Distribution Unit) modules. The frame adopts enclosed type structure to protect the optical fibers from dust.

3.Feature
1. 19" Standard rack mount
2. Material: SPCC cold rolled steel
3. Designed by full mobilization:
A. Unit body have the fusion of optical fiber fusion, tray storing and distribution
B. the integrated fusion and distribution tray can be singly taken out to meet the demands for operation.
4. Optical cable, pigtail fiber and patch cords can be clearly managed,
5. Easy for installation of inlay,convenient to expand capacity,obliquity of adapter is 30 degree.
6. Ensure the bend radius of patch cord and avoid laser burning eyes.
7. FC, SC port is available for the integrated fusion and distribution tray
8. Two sides accommodate cable entry and exit


4.Specification
1. Under the general air pressure, 500VDC,insulation resistance≥1000MΩ;
2. The high voltage protection can undertake 3000VDC,no spark-through and flashover within 1 minutes.
3. Technical and quality grade reaches the ISO/IEC11801 requirement.
4. Working temperature-20°C~+55°C;
5. Working humidity≤95% (30°C);
6. Working atmospheric pressure 70~106KPa


5.Product list

Capacity

Dimension(mm)

Weight(kg)

12 port

430 x 300 x 35

3KG

24 port

430 x 300 x 70

5KG

48 port

430 x 300 x 140

7KG

72 port

430 x 300 x 200

10KG

96 port

430 x 300 x 250

15kg


6.Testing parameter

Availability
Performance temperature: -40 ~+60
Relative humidity ≤95

+40

Atmospheric pressure 70kPa~106kPa
Performance wavelength 850nm 1310nm 1550nm
Loss(insertion interchange and repetition) ≤0.3dB
Turn loss PC type≥45dB UPCtype≥50dB APC type≥60dB
Insertion and pull life 1000times
Max. voltage

3000VDC/1min

Insulated resistance

2x104M

/500VDC


6.General description

Material

SPCC, Aluminum Alloys and etc. anti-corrosion material

Thickness

0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm and etc are all available

Processing

Laser cutting, CNC punching, CNC bending, welding, stamping, etc

Surface treatment

Painting, hot galvanized, powder coating, polishing, brushing, catastrophes, etc

Certification

ISO9001:2001

Deliver time

15-20 days after deposit received

Files available

Solid works, Auto CAD, PDF

Brand

W-TEL

IP

IP65&66

Main customers

China Uni com, China Telecom, CMCC etc.

Application fields

Used for FTTZ, FTTB, FTTR, and wireless base station

Structure

OEM design

Insulation Resistance

>1000MV/500VDC

Withstand Voltage

>3000VDC/min and no breakdown fly arc

Package

Package with hard paper box, Plywood box, wooden box,

Contract Manufacturing

OEM Service, Design Service, Buyer Label Offered

Installation Method

Complete module installation

Capacity

1,200, 4,000, 5,000 and 6000 lines

Corrosion resistant performance

All the materials selected are with high corrosion resistance performance

Leave Message
Related Product

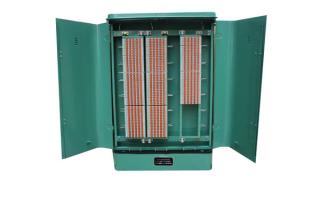

W-TEL-CCA-Series Copper Cross connection Cabinet W-TEL-CCA-Series Copper Cross connection Cabinet
Feature: Both IDC and wire wrap connection modules are available. The connection block is consisting of double side colorful terminals which make easy operation and maintenance. Operator c...
Detailed +
W-TEL-DDF-Series Digital Distribution Frame W-TEL-DDF-Series Digital Distribution Frame
Digital Distribution Frame The modular device uses 75W coaxial connectors, which facilitate installation, operation and capacity expansion. The frame, made of aluminum profiles and...
Detailed +
W-TEL-FTB-Series Optic fiber terminal box W-TEL-FTB-Series Optic fiber terminal box
Summary: The terminal box is used to direct, terminal or branching connection of the fiber. Features: Optical termination box has the following features: The splice of optical cab...
Detailed +

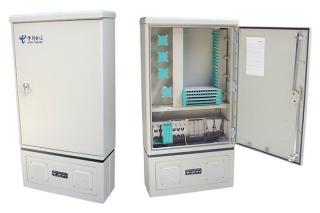

W-TEL-CCA-Series Splitter fiber cross connection cabinet W-TEL-CCA-Series Splitter fiber cross connection cabinet
